Automation series

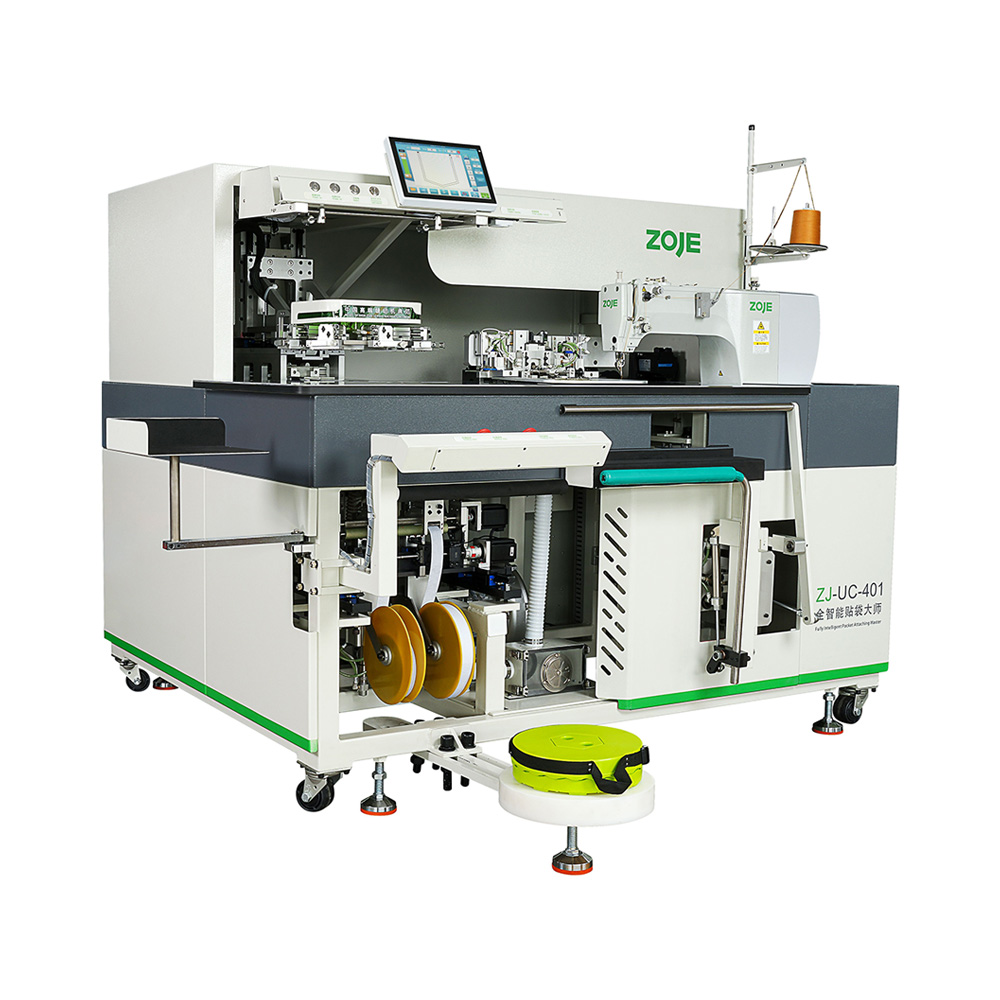

ZJ-UC-401 All-Smart Pocket Master

Advantage：Adapts to Denim, Workwear, and Knitted Fabric Pockets, Sews 3000+ Units in 8 Hours,1 Machine = 5 Workers' Efficiency: Product Manual; Instruction Manual; Parts Manual

400-807-9881

0576-87338345

Product Introduction

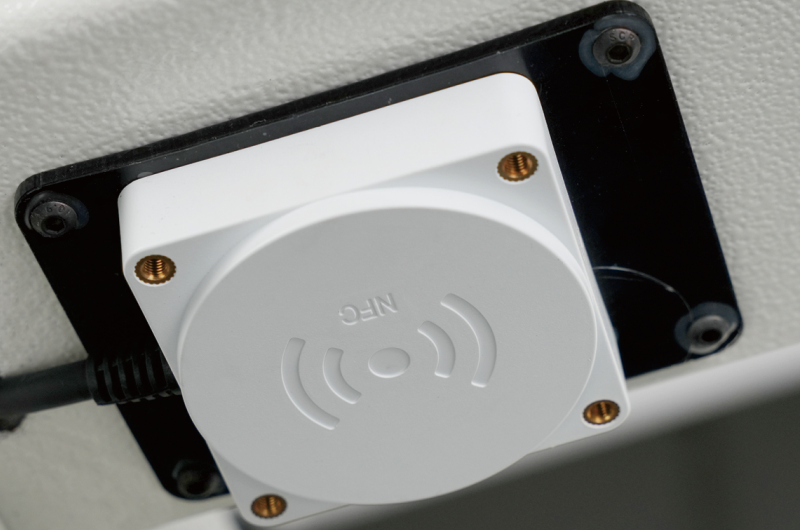

Intelligent Pattern Recognition System: One-Key Pattern Change, Flexible Response

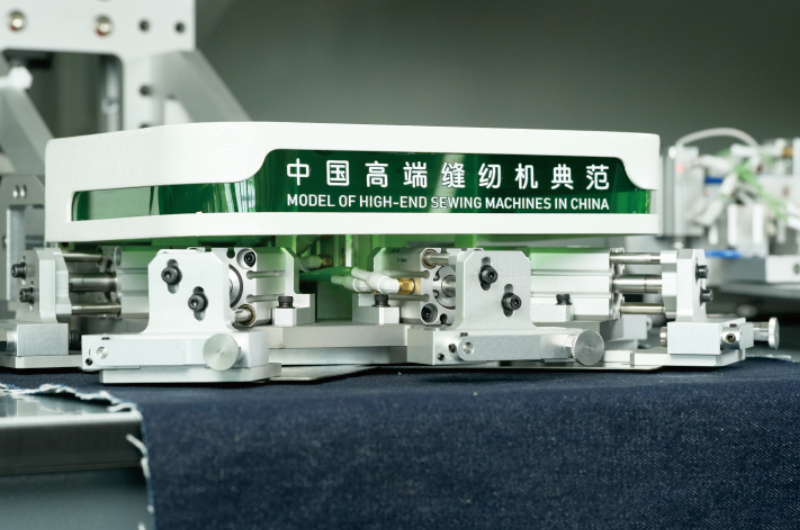

Quick Mold Change, Doubled Efficiency: Minute-Level Mold Change, Soaring Capacity

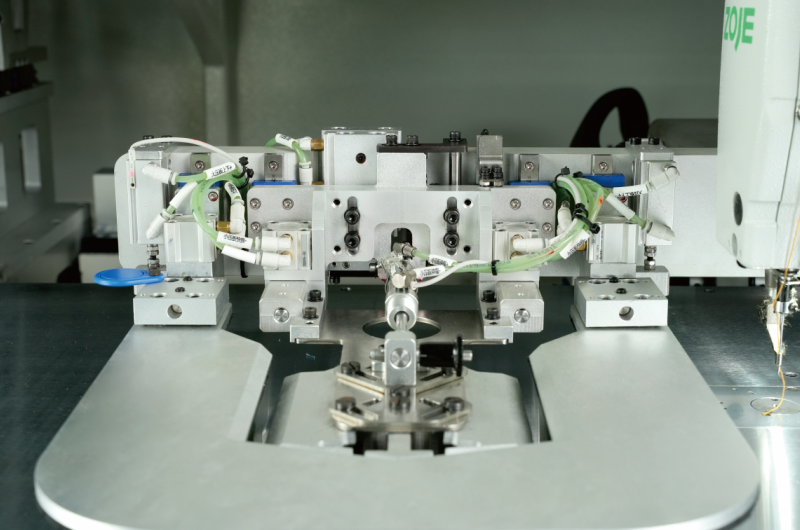

Strong Thick/Thin Fabric Adaptability: Universal Material Adaptation, One Machine for Multiple Uses

A Visual Recognition System: Intelligent Quality Inspection, Worry-Free Quality

Intelligent Pattern Recognition System: One-Key Pattern Change, Flexible Response

Quick Mold Change, Doubled Efficiency: Minute-Level Mold Change, Soaring Capacity

Strong Thick/Thin Fabric Adaptability: Universal Material Adaptation, One Machine for Multiple Uses

A Visual Recognition System: Intelligent Quality Inspection, Worry-Free Quality

Intelligent Pattern Recognition System: One-Key Pattern Change, Flexible Response

Quick Mold Change, Doubled Efficiency: Minute-Level Mold Change, Soaring Capacity

Strong Thick/Thin Fabric Adaptability: Universal Material Adaptation, One Machine for Multiple Uses

Technical Parameters

Model	ZJ-UC-401A	ZJ-UC-401B	ZJ-UC-401A-1	ZJ-UC-401B-1	ZJ-UC-401A-1-V	ZJ-UC-401B-1-V
Machine Head	Original Brother Pattern Sewing Machine	Domestic Pattern Sewing Machine	Original Brother Pattern Sewing Machine	Domestic Pattern Sewing Machine	Original Brother Pattern Sewing Machine	Domestic Pattern Sewing Machine
Circular Pad Device	None	None	Standard Configuration	Standard Configuration	Standard Configuration	Standard Configuration
A Visual Recognition Detection System	None	None	None	None	Standard Configuration	Standard Configuration
Maximum Rotational Speed	2,800 RPM
Maximum Pocket Attaching Range	X-direction: 210mm, Y-direction: 250mm
Maximum Stitch Length	12.7mm
Machine Needle	Dp17 #14-#21 (Factory standard configuration: #19)
Voltage	220±10%V 50/60HZ
Output Power	1.3KW (with fan)
Air Pressure	0.5MPa (5bar)

UC: Denim category
